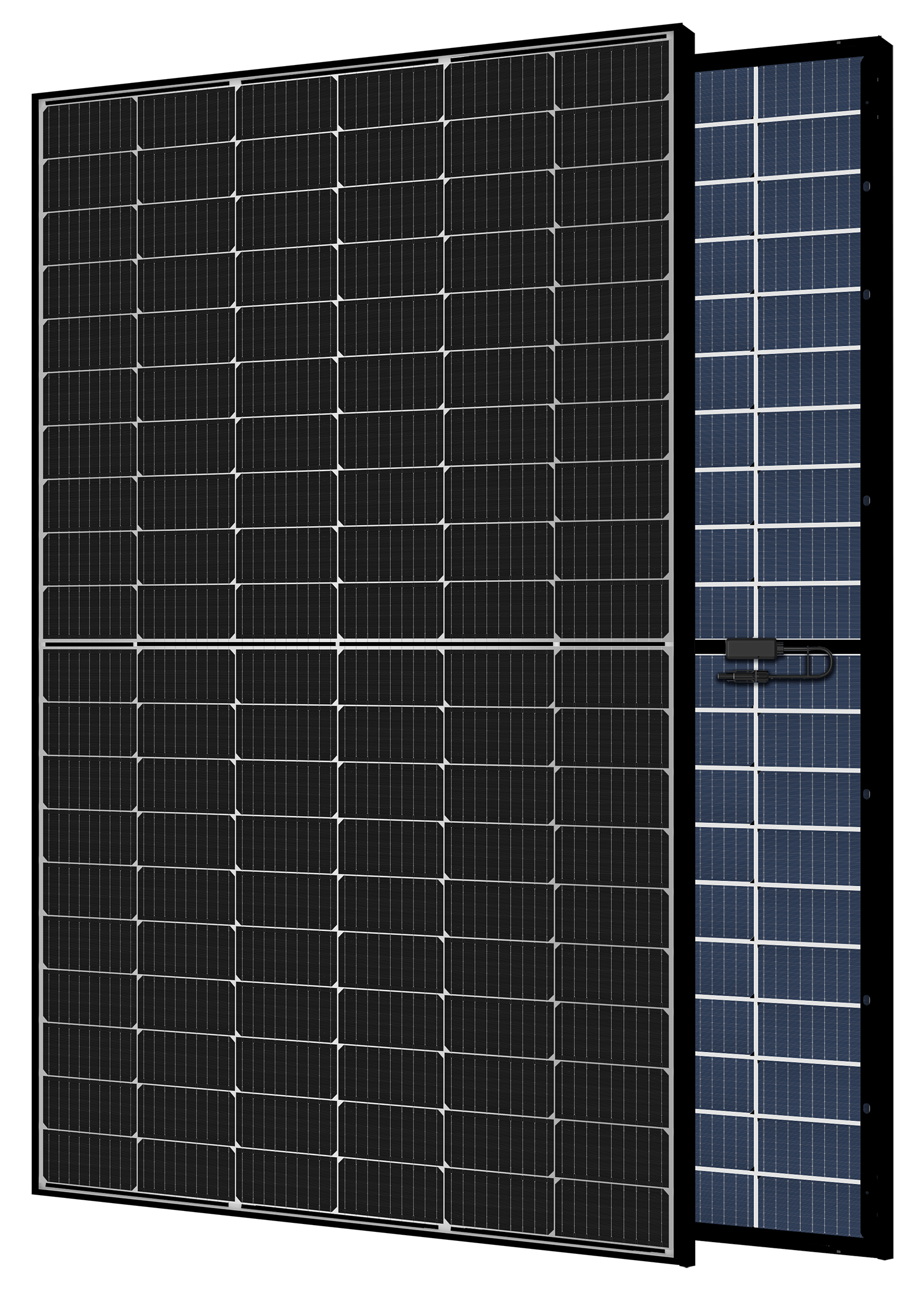

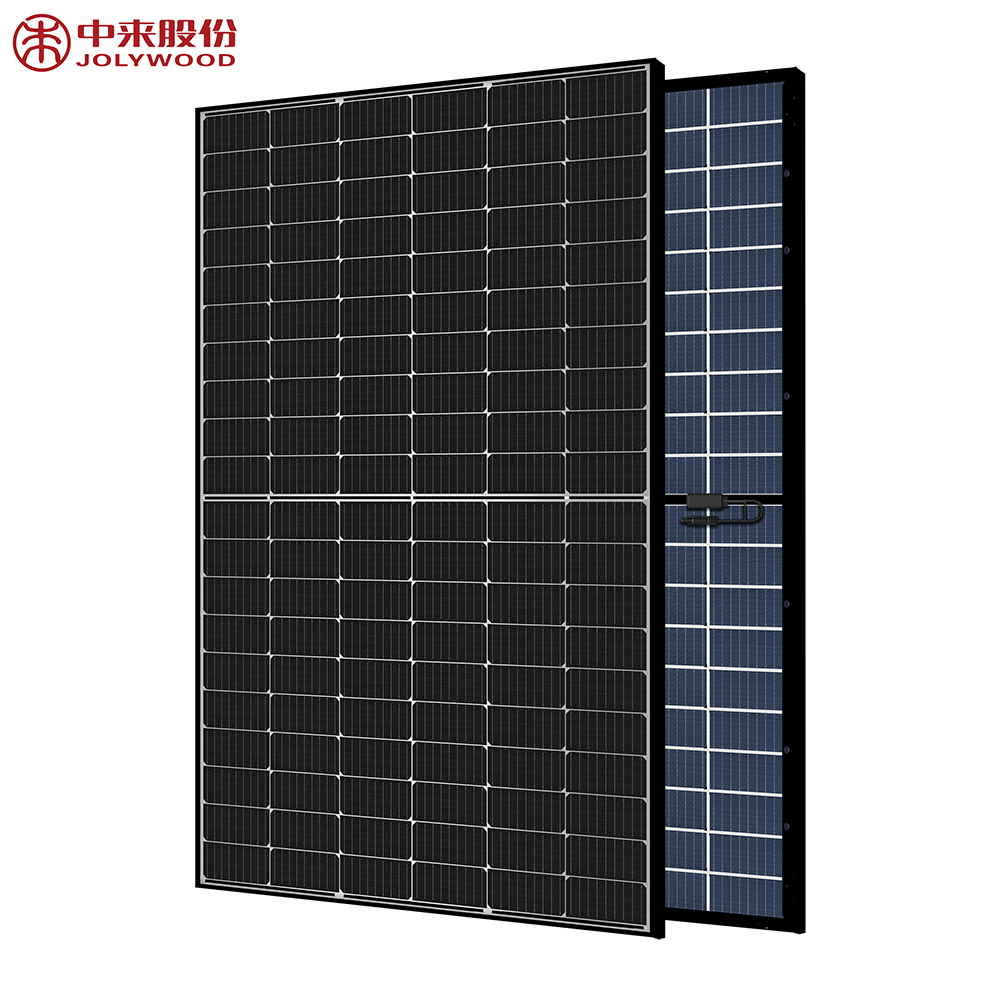

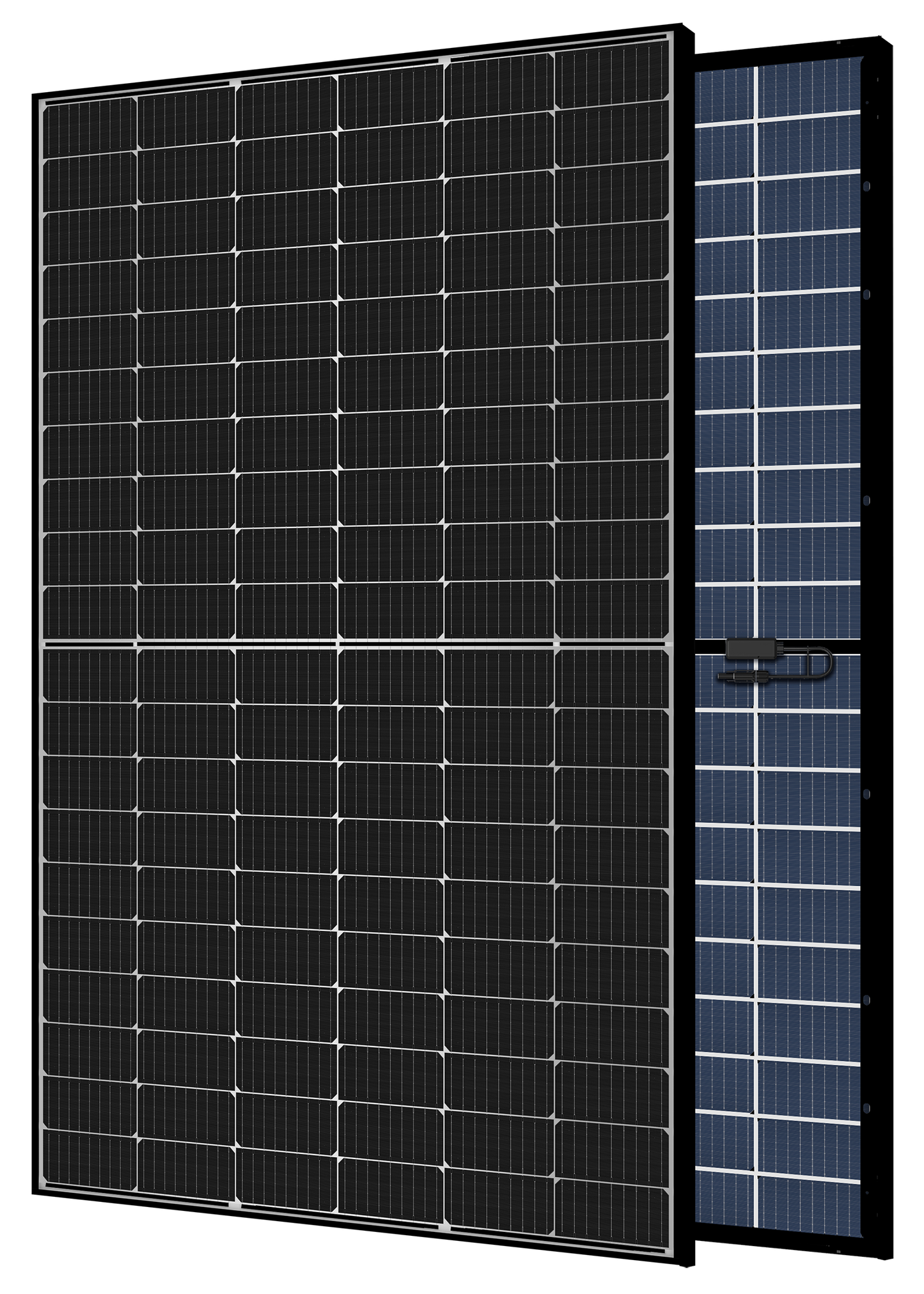

Panel Bifacial Jolywood JW-HD120N-380

Additional Power Generation Gain

• At least 30-year product life, more than 10% - 30% additional power gain comparing with conventional module

ZERO LID (Light Induced Degradation)

• N-type solar cell has no LID naturally, can increase power generation

Lower LCOE

• High power and 1500V system voltage,saving BOS cost

Better Weak Illumination Response

• Wide spectral response, higher power output even under low-light settings like smog or cloudy days

Better Temperature Coefficient

• Higher power generation under working conditions, thanks to passivating contact cell technology

Wider Applicability

• BIPV, vertical installation, snowfield, high-humid area, windy and dusty area



Jolywood Delivers Reliable Performance Over Time

• Leader of N-type bifacial manufacturer
• Full-automatic facility and industry-leading technology
• Best-in-class durability and reliability
• BNEF Tier On



Product introduction

No. of Cells: 120pcs(12*10)
Peak Power（Pmax）：395W
Maximum Efficiency（%）： 21.65%
Operating Temperature（℃）：-40℃~+85℃
Maximum System Voltage（V)：1500V（IEC）
Temperature Coefficient of Pmax：-0.31%/℃
Nominal Operating Cell Temperature (NOCT)： 42±2℃
